THE OPTIMAL CHOICE FOR IMPLANTOLOGISTS,
The innovative FOV of Green Smart provides an arch-shaped volume, which shows a wider view of dentition compared to other devices with the same FOV.
|Practical 3 in 1 System||
|SMART Innovation for Accurate Diagnosis||
|SMART Innovation for Low Dose||
|3D Scanning for Model||
Anatomical FOV, 12×9
The innovative FOV of the Green Smart provides an arch-shaped volume, which shows a wider view of dentition compared to other devices of the same FOV. Normally, a FOV 10×8.5 image shows tooth #8. However, when the tooth is lying on its side, there is a high possibility that the tooth will be cut out of the image. The «arch-shaped volume» eliminates this possibility and shows the hidden dentition area.
ART-V (Artifact Reduction Technology of VATECH)
ART-V finds out the location of metals when radiation is exposed. And it deletes the metal in projection data artificially and fills that part with the similar values to surrounding area. At the same time, it remembers the original location and status of metals and then it inpaints the area with new value which has no streaks.
Same words, but different meaning
Metal artifact hinders visualization and naturally reduces diagnostic confidence
This picture is for illustration purposes only.
PROFESSIONAL DIAGNOSTIC VALUE WITH PANORAMIC IMAGES
Green Smart Provides the most precise and high quality panoramic image. Clear and sharp panoramic image brings you better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.
MAGIC PAN creates a more superb panorama image. It is acquired through the elimination of distorted and blurred images caused by improper patient positioning(Optional).
Focused image is reorganized throughout the whole dental arch and the image quality can be increased. The image becomes clearer especially in the incisor and canine region, TMJ areas and root canal.

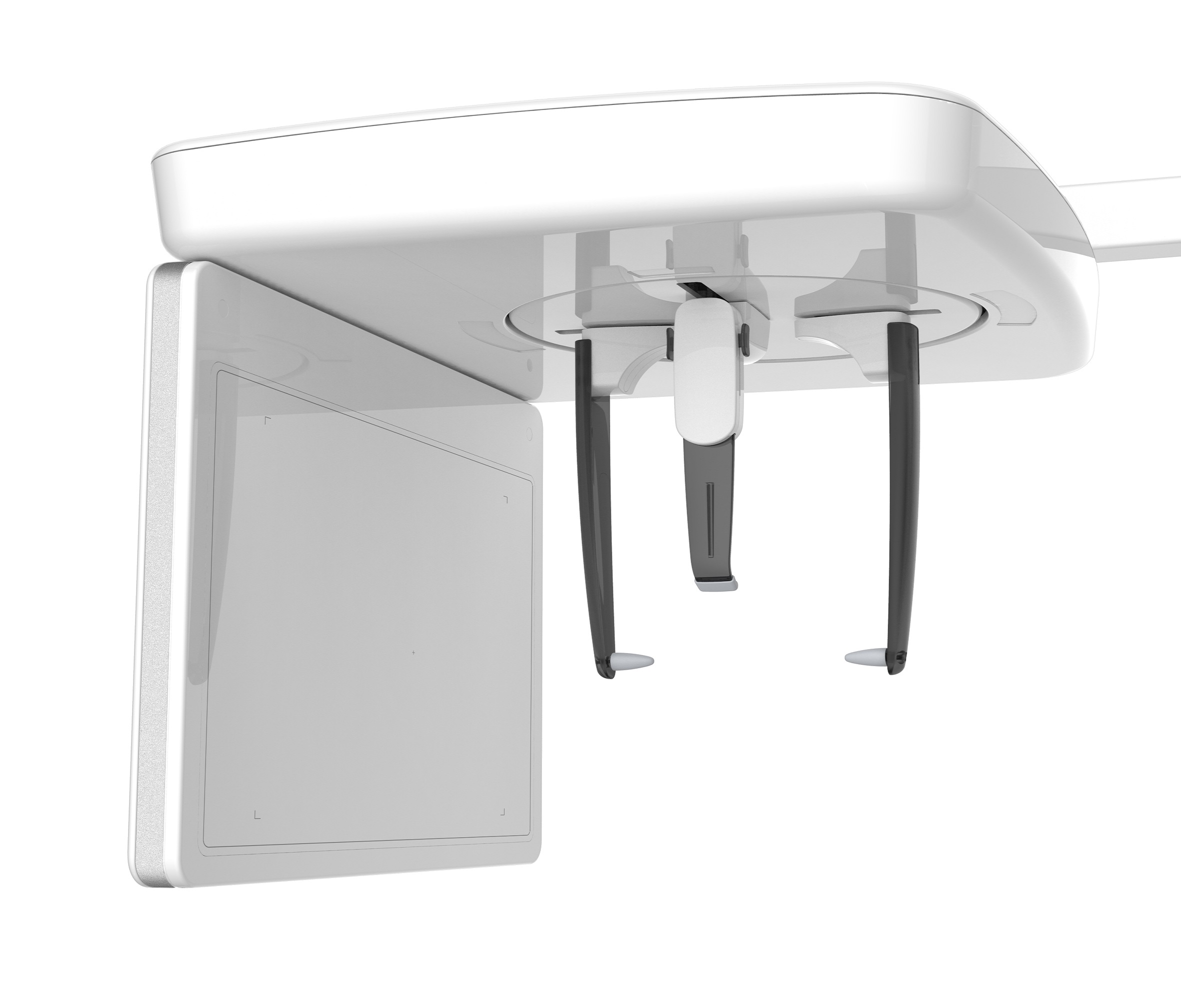

PROFESSIONAL DIAGNOSTIC VALUE WITH CEPHALOMETRIC IMAGES
Green Smart provides optimal images with an exclusively designed sensor for cephalometric diagnosis.
Scan type Cephalometric
Scan type cephalometric offers two image sizes, LAT and FULL LAT, you can choose one of them based on the purposes of your diagnostic needs.
LATERAL / FULL LATERAL
Provide specialized high quality images to suit Full lateral gives 30% larger images and the occipital orthodontics and maxillofacial surgeries’ area of the patient for comprehensive diagnosis. (optional)
|Funtion||CT(with Auto Pano) + Pano + Ceph + Model Scan|
|Focal Spot||0.5mm(IEC 60336)|
|CT FOV Size||10×8.5 / 10×7 / 5×5|
|Pano||14.1sec / 7sec(Option with Magic PAN)|
|Ceph||1.9sec / 3.9sec|
|Gray Scale||14 bit|

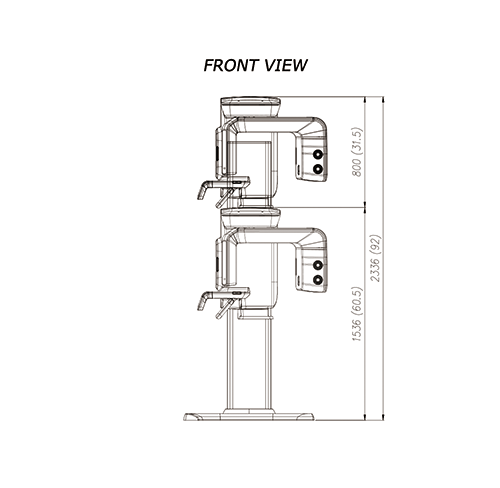

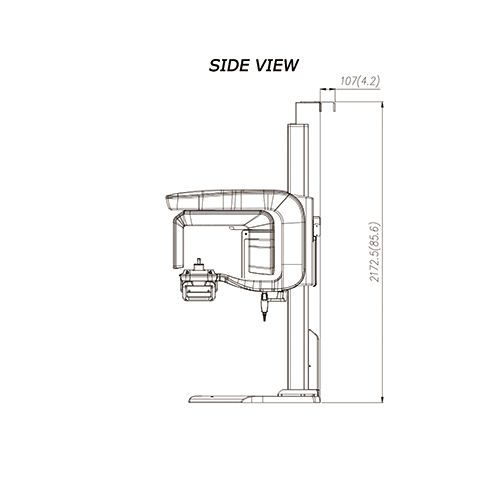

|Weight||Without Ceph unit||137kg(302.0 lbs)|
|With Ceph unit||162kg(357.1 lbs)|
*The specifications are subject to change without prior notice.
